CNC Fast Wire Horizontal Foam Cutting Machine

Product

CNC Fast Wire Series

CNC Fast Wire Horizontal Foam Cutting Machine

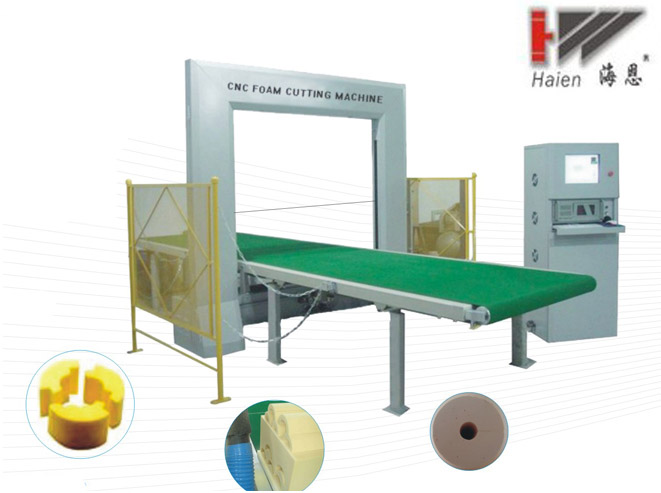

HAIEN CNC fastwire horizontal contour cutting machine use a high speed abrasive wire,running in excess of 150km/h speed,Ensuring that it can process almost all foamsss available on the market.The fast wire moving locus is controled by precision step motors,teamed with the powerful Haien Profiler software,the Fastwire is equally at home with profilling small prototype runs to large production runs,guaranteeing improved yield, quality and repeatability each time.

Flexible and rigid polyurethane(PU)foams
EVA foam
Expanded polyurethane(EPS)foam
Rockwool
Poly-ethylence(PE)foam
Rebond or chip foam
Phenolics foams (conditions apply)
PVC foam
Parameter\Model CNC-SP12H CNC-SP20H CNC-SP25H

Size max (mm) L2500×W1200×H1200 2500×2000×1200 2500×2500×1250

Cutting wire diameter (mm) 1.01.5 1.01.5 1.01.5

PowerKW 4 6 8.5

CNC PC/Industrial control computer PC/Industrial control computer PC/Industrial control computer

Cuttinging speed (m/min) 0--6 0--6 0--6

Cutting accuracy (mm) ±0.5 ±0.5 ±0.5

Dimensions
Length(mm) 4200 5000 5800

Wide(mm) 2000 3000 3600

Hight (mm) 2800 2800 3000

Cutting mode 2D 2D 3D

Computer system Window98 or above Window98 or above Window98 or above

Weight 1.2 ton 1.8 ton 2.5 ton
