The principle of work

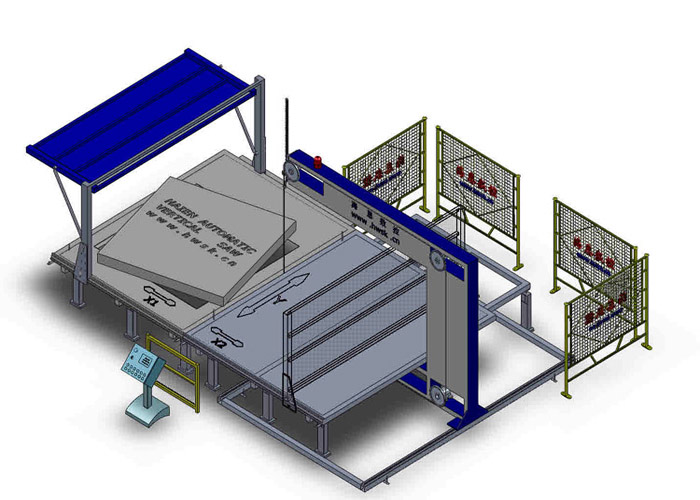

     The new automatic vertical cutting machine, may relize the same function with foreign similar equipment, which is controlled by the microcomputer PLC, cutting the two-direction faster twice than the single-direction ,smooth aluminum-plastic cutting table, durable,stepless feed, digital control the thickness of the products. The machine ‘structure is compact, the performance is reliable, noise lower, operating is simple, the maintenace is easy.

The machine is mainly used for sewing and baiting of the various EVA foam and flexible and rigid foam materials,is widely applied to automated slicing production in the sponge plant, furniture factory, packaging supplies factory.

Control System: PLC + Frequency governor

Digital control the thickness of the products

Cutting the two-direction faster twice than the single-direction

Smooth aluminum-plastic cutting table, durable

Stepless feed

Four-wheel transmitting

Automatic sharpen-knife devices

Cutting thickness min(mm): 1

Blade length (mm): 6910

Total power (KW): 4

Size(mm): L2250×W2800×H600 ~ 1200 (optional)

Dimensions (mm): L3300 × W3650 × H1850
